801-87-004-10-001101
Manufacturer:
Preci Dip
Mfr.Part #:
801-87-004-10-001101
Datasheet:
Description:

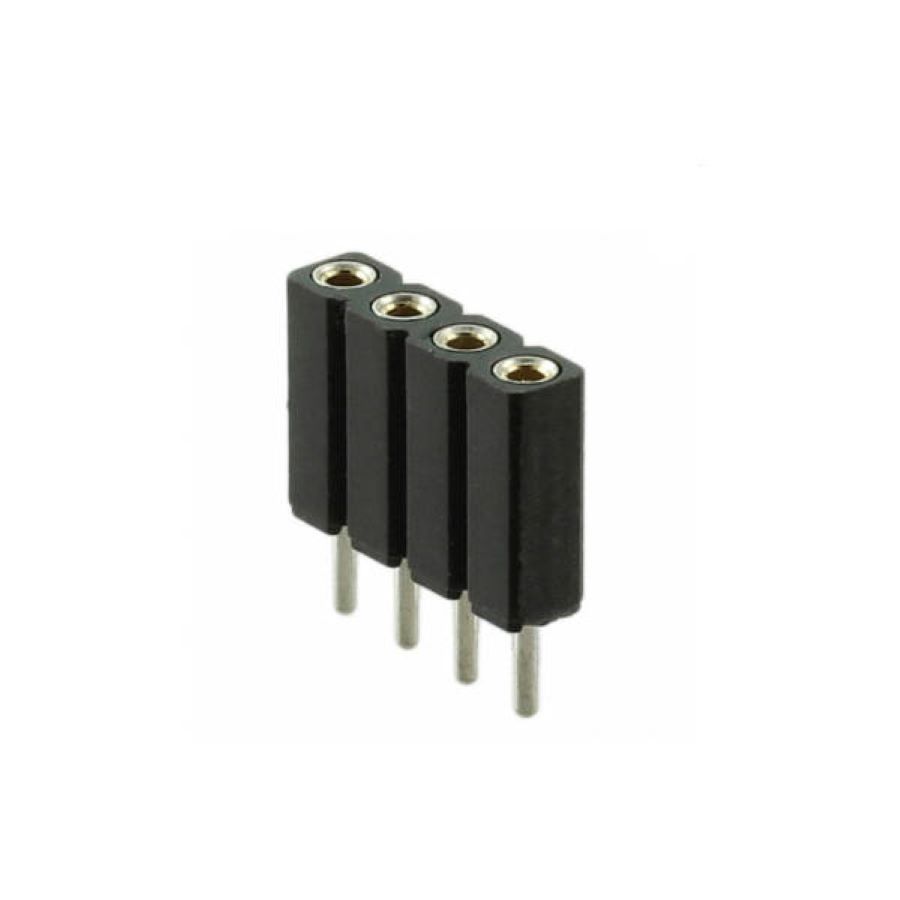

Headers and Wire Housings Through Hole Socket Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.16 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 150 V |
| Depth | 2.54 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Brass, Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 150 V |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 4 |
| Connector Type | Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polychlorinated |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Housing Color | Black |
| Mating Post Length | 3 mm |
| Termination Post Length | 3 mm |
Stock: 121
Distributors
pcbx
pcbxUnit Price$0.30692
Ext.Price$0.30692
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30692 | $0.30692 |
| 10 | $0.26076 | $2.60760 |
| 25 | $0.24693 | $6.17325 |
| 50 | $0.23383 | $11.69150 |
| 100 | $0.22143 | $22.14300 |
| 300 | $0.20935 | $62.80500 |
| 500 | $0.19793 | $98.96500 |
| 1000 | $0.18713 | $187.13000 |
| 3000 | $0.17692 | $530.76000 |
| 5000 | $0.16727 | $836.35000 |
| 10000 | $0.15816 | $1581.60000 |
